Oxygen Pipeline Installation in Nagpur
1. Introduction
- Oxygen supply is critical for medical facilities — for ICUs, emergency wards, operation theatres, neonatal care, etc.
- A centralized oxygen pipeline system (medical gas pipeline system / MGPS) provides a constant, reliable, and safer supply versus relying only on cylinders.
- In Nagpur, given healthcare demand, recent infrastructure development (like the new Air Liquide plant in Butibori) adds capacity.
2. Local Context in Nagpur
- Air Liquide’s ASU and Cylinder Filling Station at Butibori supplies oxygen (70 tonnes/day) and fills ~3,000 cylinders per day. This helps support hospitals around Nagpur.
- There are local service providers for oxygen/medical gas pipeline installation. Example: Justdial listings for “Oxygen Pipeline Installation Services” in Nagpur.
- National guidelines & standards being rolled out in India for medical oxygen management (procurement, storage, administration). These apply locally.
3. Key Components of an Oxygen Pipeline System
-
Source of Oxygen
- Liquid Medical Oxygen (LMO) tank (or vacuum-insulated evaporator).
- PSA (Pressure Swing Adsorption) oxygen generator.

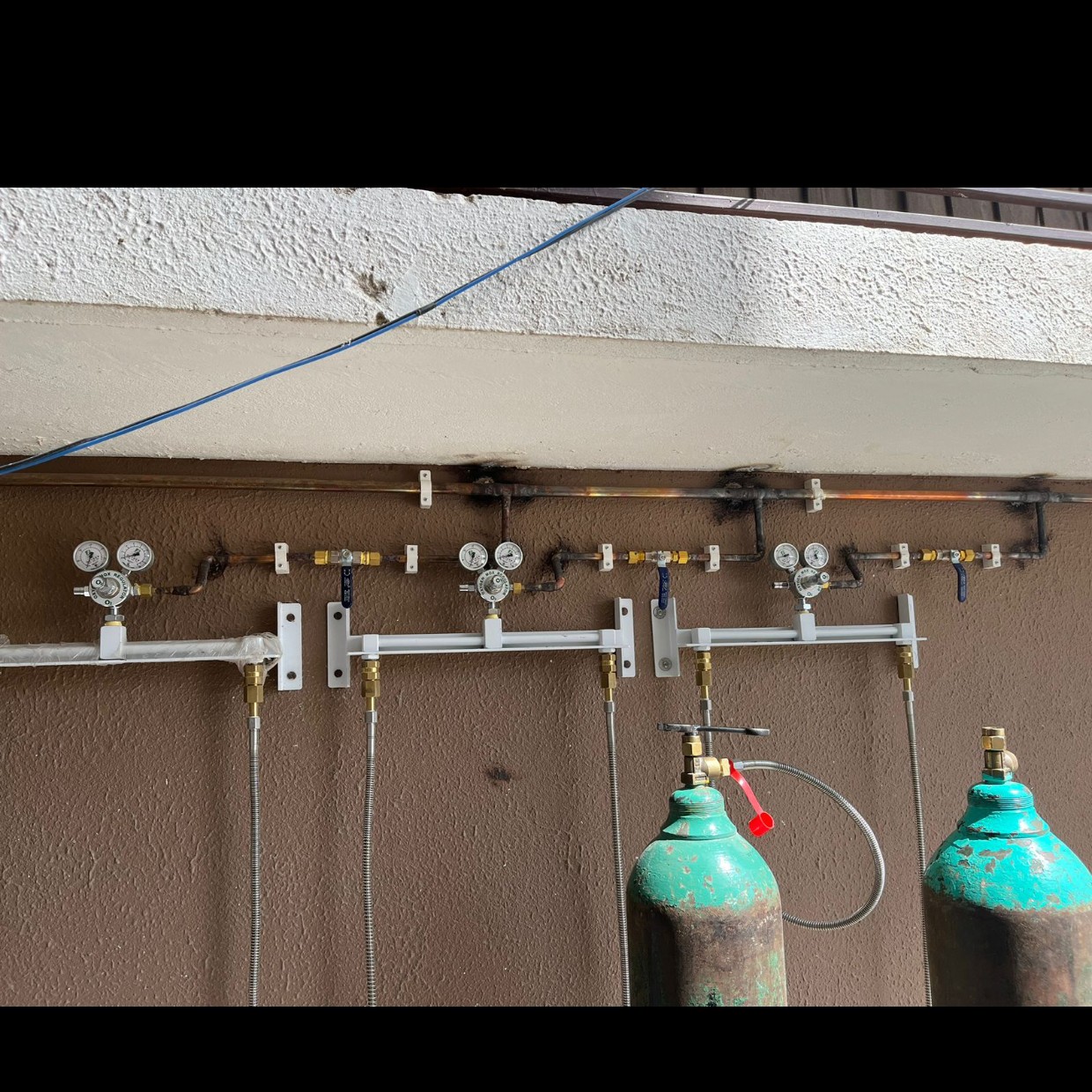

- Cylinder manifold bank as backup or in smaller facilities.
-
Primary and Backup Supply
- It’s essential to have redundancy: primary + secondary + reserve sources.
-
Piping distribution system
- Pipes, fittings, valves (appropriate material: non-ferrous, oil-free).
- Purging & cleaning procedures before commissioning.
- Proper hangers, supports, spacing, bends, to avoid stress.
-
Terminal units / outlets
- Outlets for masks, flowmeters, wall panels etc, located in wards, OT, ICU, etc.
-
Control, Valves & Manifolds
- Automatic change‐over valves/manifolds (especially for cylinder banks).
- Safety valves, regulators, pressure gauges.
-
Alarm & Monitoring System
- Pressure low / high alarms, purity monitors
5. Installation Steps & Procedure
Here is a general step-by-step process:
| Step | Description |
|---|---|
| Planning & Design | Assess oxygen demand (beds, ICU/OT requirements etc), layout of building, path of pipeline, source location, routing, pressure drop calculations. |
| Selecting Components & Materials | Pipes (stainless steel or suitable non-corrosive metal), valves, fittings; ensure “oil‐free” surfaces to prevent fire hazards. |
| Site Preparation | Identify location for manifold / tank, ensure structural support, safety clearances, ventilation. Obtain regulatory approvals (e.g. Petroleum & Explosives Safety Organisation if storing LMO). |
| Installation of Piping | Route pipes as per design; supports; welds or seamless connections; ensure minimal bends, using proper fittings. Avoid proximity to heat sources or other incompatible pipelines. |
| Cleaning / Purging | Remove rust, scale, oil, welding residues. Purge with dry, oil‐free air or inert gas (nitrogen) until clean. |
| Pressure / Leak Testing | Hydrostatic or pneumatic test—often 1.5× working pressure. Ensure no leaks. Particular safety if gas‐pressure high. |
| Color Coding / Marking | Pipes labeled / color-coded per standards (for oxygen). |
| Commissioning & Validation | Check flow & pressure at terminal units, test alarms, purity (oxygen analyzer), backup systems. |
| Maintenance & Audit | Periodic preventive maintenance, regular cleaning/purging, annual or periodic third‐party audit. Staff training. |
6. Safety Considerations
- Fire & Explosion Risk: Oxygen is a strong oxidizer; any oil/grease can catch fire. Avoid contamination.
- Proper ventilation of manifold rooms and storage areas.
- Distance from other pipelines (fuel gas, steam, etc.). Proper spacing.
- Electrical safety & earthing especially for continuous metal pipelines to avoid spark risk.
- Regulatory compliance: Licenses, code of explosives for LMO storage etc.
7. Challenges Specific to Nagpur / Similar Cities
- Environmental factors: heat, humidity – affects materials, expansion, corrosion.
- Supply chain: timely availability of high‐quality components (pipes, special valves etc).
- Regulatory approvals: may be time‐consuming. Dealing with PESO, local municipal authorities, fire safety etc.
- Skilled manpower: technicians trained in medical gas systems, quality assurance, auditing.
- Maintenance after installation: ensuring uptime, avoiding leaks, ensuring alarms & backup systems work.
8. Costs / Budgeting
- Costs depend on capacity (number of beds), length of piping, complexity of layout, source type (LMO vs generator), redundancy etc.
- Local service providers in Nagpur provide quotes (Justdial etc) – can vary widely.
- Also need to budget for recurring costs: maintenance, monitoring, backups.
9. Regulatory / Licensing
- Approval from PESO (if handling liquid oxygen / large LMO tanks).
- Building permissions, fire department clearance.
- Following government medical oxygen management guidelines
